GX 126 Tri-Axle
Model Details

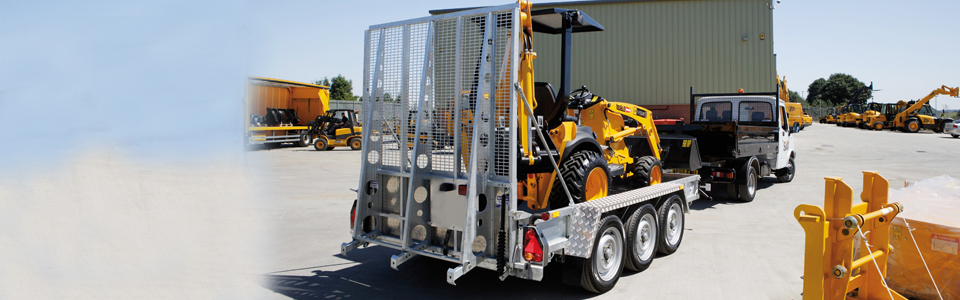

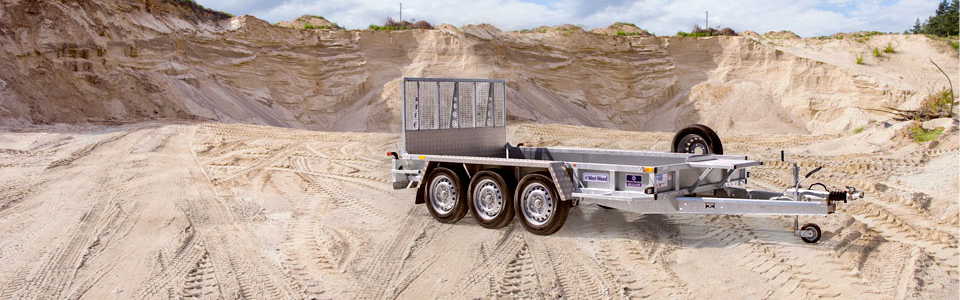

PK Trailers introduces the GX126 Tri Axle plant trailer from Ifor Williams the leading manufacturer of trailers in Europe. The GX126 Tri Axle plant trailer is available in skids and ramps and can transport plant machinery and loads up to 3500 kg and is built to last the demands of a busy workload.
It has a long chassis with an overall length of 5.7 meters ideal for transporting longer and bigger plant machinery. It also has added width of 2.3 meters. The GX Series of trailers from Ifor Williams are built with folded and pre-galvanized steel sections with filled-in sides for greater flexibility and durability.
All Ifor Williams plant trailers are fitted with integrated ramp and skid supports. This standard feature ensures trailers are supported when loaded without the need to deploy prop stands. The Ifor Williams GX plant trailer comes with hinged adjustable skids or a full-width loading ramp plus a built-in bucket rest as standard.
Model | Tyres | Gross Weight | Unladen Weight | Internal Length | Internal Width | Overall Length | Overall Width |
---|---|---|---|---|---|---|---|
GX84 Skids | 165R13C | 2700kg | 540kg | 2.45m/8′ | 1.27m/4’2" | 4.38m | 1.78m |
GX84 Ramp | 165R13C | 2700kg | 540kg | 2.45m/8′ | 1.27m/4’2" | 4.38m | 1.78m |
GX105 Skids | 165R13C | 2700kg | 660kg | 3.03m/9’11" | 1.57m/5’2" | 5.05m | 2.10m |
GX105 Ramp | 165R13C | 2700kg | 675kg | 3.03m/9’11" | 1.57m/5’2" | 5.05m | 2.10m |
GX105 HD Skids | 155/70R12C | 3500kg | 670kg | 3.03m/9’11" | 1.57m/5’2" | 5.05m | 2.10m |
GX105 HD Ramp | 155/70R12C | 3500kg | 690kg | 3.03m/9’11" | 1.57m/5’2" | 5.05m | 2.10m |
GX125 HD Skids | 155/70R12C | 3500kg | 740kg | 3.66m/1’2" | 1.57"/5’2" | 5.70m | 2.10m |
GX125 HD Ramp | 155/70R12C | 3500kg | 760kg | 3.66m/1’2" | 1.57m/5’2" | 5.70m | 2.10m |
GX106 Skids | 155/70R12C | 3500kg | 700kg | 3.03m/9’11" | 1.84m/6′ | 5.05m | 2.30m |
GX106 Ramp | 155/70R12C | 3500kg | 715kg | 3.03m/9’11" | 1.84m/6′ | 5.05m | 2.30m |
GX126 Skids | 155/70R12C | 3500kg | 765kg | 3.66m/12′ | 1.84m/6′ | 5.70m | 2.30m |
GX126 Ramp | 155/70R12C | 3500kg | 795kg | 3.66m/12′ | 1.84m/6′ | 5.70m | 2.30m |
GX126 Skids Tri Axle | 155/70R12C | 3500kg | 875kg | 3.66m/12′ | 1.84m/6′ | 5.70m | 2.30m |
GX126 Ramp Tri Axle | 155/70R12C | 3500kg | 890kg | 3.66m/12′ | 1.84m/6′ | 5.70m | 2.30m |
