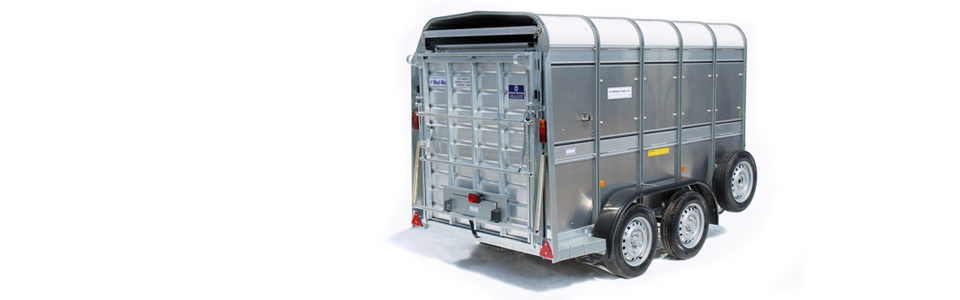

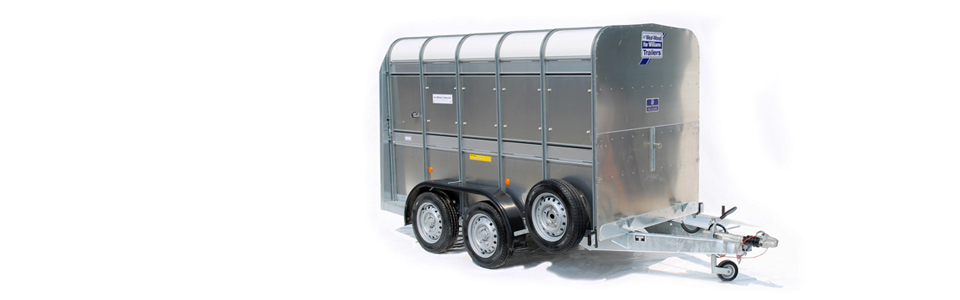

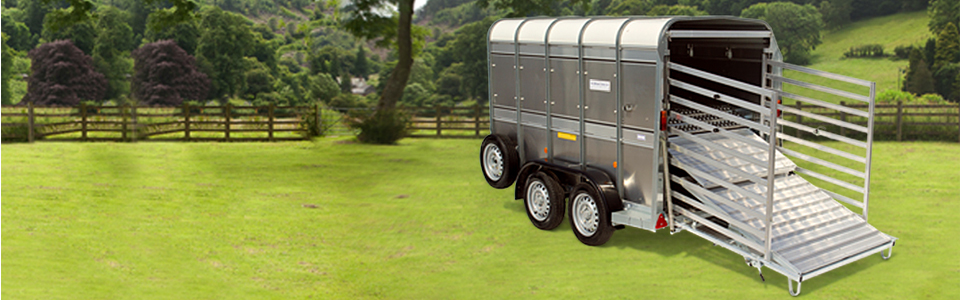

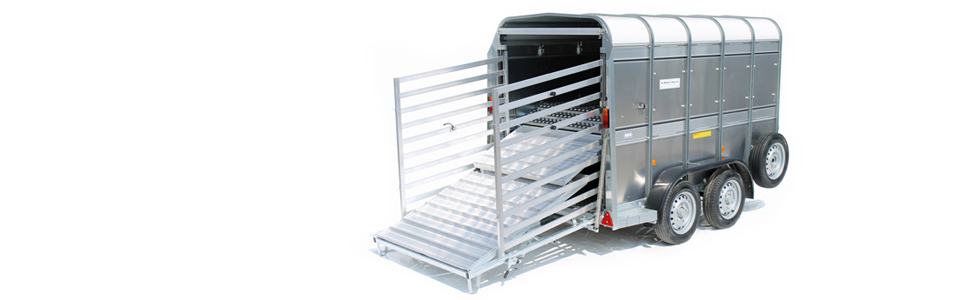

PK Trailers present the Ifor Williams TA5 10’ Livestock Trailer for sale in Roscommon.The TA5 10’ from Ifor Williams offers strong, impact-resistant aluminium constructed side panels, which allow for heavy duty agricultural use. Its sturdy galvanized steel chassis design and drawbar help to provide long lasting corrosion protection, ideal for Irish county roads providing for a maximum 2700 kg load.
Its distinctive steel roof channels provide for a strong and tough frame on braked models. The durable flooring on the TA5 10’ livestock trailer is constructed with strong pressure treated timber which is surrounded by a 2mm thick slip resistant aluminium treadplate which is designed to increase safety and reliability. Available to view at our showrooms in Roscommon.
|Model||Tyres||Gross Weight||Unladen Weight||Internal Length||Internal Width||Overall Length||Overall Width|
|TA5 8’x4’ H/R||165R13C||2700kg||610kg||2.32m||1.53m||3.92m||2.10m|
|TA5 10’x4’ H/R||165R13C||2700kg||710kg||3.12m||1.53m||3.92m||2.10m|
|TA5 12’x4’ H/R||165R13C||2700kg||790kg||3.72m||1.53m||5.20m||2.10m|
|TA5 8’x6’ H/R||165R13C||2700kg||725kg||2.32m||1.53m||3.92m||2.10m|
|TA5 10’x6’ H/R||175/75R16C||2700kg||875kg||3.12m||1.53m||4.60m||2.10m|
|TA5 10’x7’ H/R||175/75R16C||2700kg||910kg||3.12m||1.53m||4.60m||2.10m|
|TA5HD 12’x6’ H/R||175/75R16C||3500kg||1005kg||3.72m||1.53m||5.20m||2.10m|
|TA5HD 12’x6’ H/R||6.50R16C||3500kg||1005kg||3.72m||1.53m||5.20m||2.10m|
|TA5HD 12’x7’ H/R||175/75R16C||3500kg||1030kg||3.72m||1.53m||5.20m||2.10m|
|TA5HD 12’x7’ H/R||6.50R16C||3500kg||1030kg||3.72m||1.53m||5.20m||2.10m|
Built to last
The galvanized steel chassis and drawbar offer unbeatable corrosion protection. Couple this with the high strength, impact-resistant aluminium side panels, these trailers will often outlast the vehicles that tow them. The distinctive steel roof channels on braked models give a strong and rigid frame. The flooring on these trailers comprises of thick pressure treated timber planking protected by 2mm thick slip resistant aluminium treadplate.
Stability when towing
All of our braked trailers feature the exclusive Ifor Williams beam axle and leaf spring suspension system which has been developed and refined for a safe and stable ride. Similar systems are widely used on commercial vehicles where performance under load is essential. Renowned for its durability and ease of maintenance the Ifor Williams beam axle system contributes significantly to the low depreciation of our trailers.
