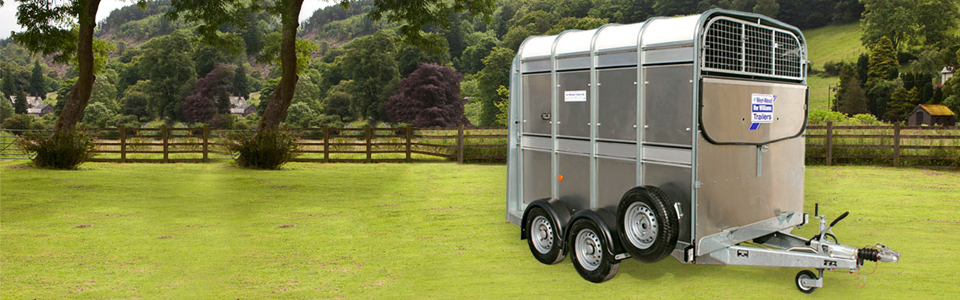

PK Trailers presents the Ifor Williams the best selling TA5 8’ Livestock Trailer for sale in Roscommon. This popular model is supplied with a range of different widths and headroom and includes the EasyLoad Deck system, unique to Ifor Williams trailers. The EasyLoad ramp and folding deck system makes for easy loading of the upper deck without the requirement of the owner to handle ramps or livestock.
The Ifor Williams 8’ and 10’ models provide a maximum gross weight of 2700kg, with the 12’ heavy duty version offering a sturdy 3500kg maximum gross weight for travelling heavier loads. The Ifor Williams TA5 trailer is suitable for use with cattle and other livestock when the deck system folded away. When required the deck can be quickly opened or stowed within without the need for any special tools or equipment.
Once in use, the unique Ifor Williams EasyLoad ramp can be operated easily, lifting into position, assisted by two gas springs. This loading procedure requires little aid from the owner and stowage is just as easy. Utilising the weight of the owner the ramp lowers and is simply locked in place. The Ifor Williams EasyLoad ramp is used alongside the folding deck system and must be requested when ordering the trailer from PK Trailers.
|Model||Tyres||Gross Weight||Unladen Weight||Internal Length||Internal Width||Overall Length||Overall Width|
|TA5 8’x4’ H/R||165R13C||2700kg||610kg||2.32m||1.53m||3.92m||2.10m|
|TA5 10’x4’ H/R||165R13C||2700kg||710kg||3.12m||1.53m||3.92m||2.10m|
|TA5 12’x4’ H/R||165R13C||2700kg||790kg||3.72m||1.53m||5.20m||2.10m|
|TA5 8’x6’ H/R||165R13C||2700kg||725kg||2.32m||1.53m||3.92m||2.10m|
|TA5 10’x6’ H/R||175/75R16C||2700kg||875kg||3.12m||1.53m||4.60m||2.10m|
|TA5 10’x7’ H/R||175/75R16C||2700kg||910kg||3.12m||1.53m||4.60m||2.10m|
|TA5HD 12’x6’ H/R||175/75R16C||3500kg||1005kg||3.72m||1.53m||5.20m||2.10m|
|TA5HD 12’x6’ H/R||6.50R16C||3500kg||1005kg||3.72m||1.53m||5.20m||2.10m|
|TA5HD 12’x7’ H/R||175/75R16C||3500kg||1030kg||3.72m||1.53m||5.20m||2.10m|
|TA5HD 12’x7’ H/R||6.50R16C||3500kg||1030kg||3.72m||1.53m||5.20m||2.10m|
Built to last
The galvanized steel chassis and drawbar offer unbeatable corrosion protection. Couple this with the high strength, impact-resistant aluminium side panels, these trailers will often outlast the vehicles that tow them. The distinctive steel roof channels on braked models give a strong and rigid frame. The flooring on these trailers comprises of thick pressure treated timber planking protected by 2mm thick slip resistant aluminium treadplate.
Stability when towing
All of our braked trailers feature the exclusive Ifor Williams beam axle and leaf spring suspension system which has been developed and refined for a safe and stable ride. Similar systems are widely used on commercial vehicles where performance under load is essential. Renowned for its durability and ease of maintenance the Ifor Williams beam axle system contributes significantly to the low depreciation of our trailers.
